Textile urethane drive belts / urethane round belt transmission line

Brand Name : jiuna

Model Number : diameter3-20m

Certification : ROHS

Place of Origin : china

MOQ : 10 rolls

Payment Terms : L/C, T/T, L/C, Western Union, MoneyGram

Supply Ability : 100,000,00 as per month

Delivery Time : Within 5 working days After receipt of your deposit

Packaging Details : Inner packing is plastic film .outer packing is carton

color : green

hardness : 85A-90A

longth : 400/roll 200m/roll

export port : shanghai of china

type : PU rough round belt

Lead time : 5days-7days

Contact Now

Textile urethane drive belts / urethane round belt transmission line
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
PU Round belt with reinforcement

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

In

mm

%

Kg

Lbs

Shore( A)

Length of rolled
( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30





Service commitment:
“Quality for keeping going ,Credit to win the world”

Textile urethane drive belts / urethane round belt transmission lineTextile urethane drive belts / urethane round belt transmission line


Product Tags:

pu extruded belt



green round belt


 Textile urethane drive belts / urethane round belt transmission line Manufactures

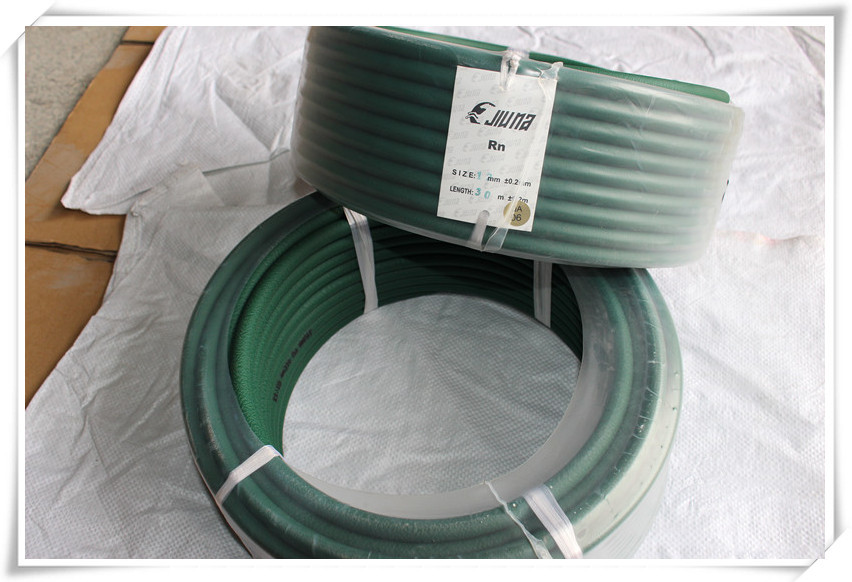

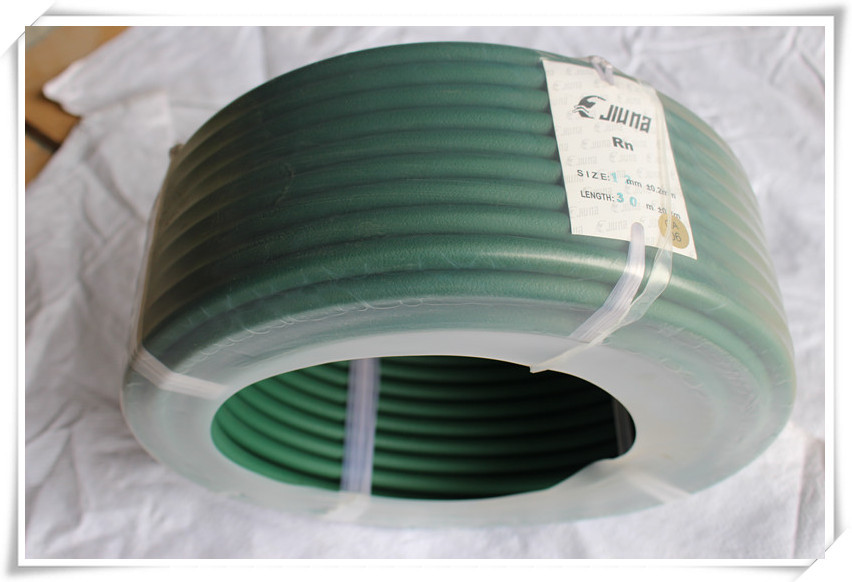

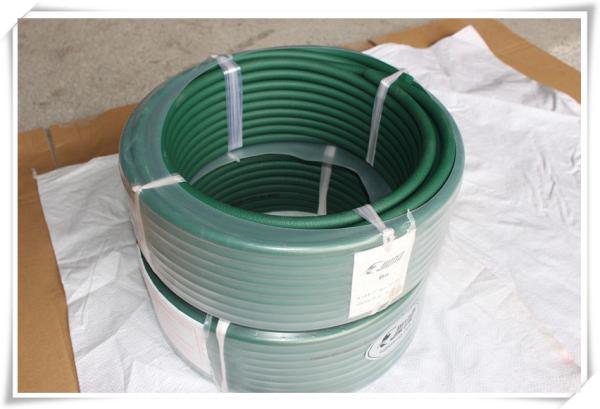

Textile urethane drive belts / urethane round belt transmission line Images
